Dell SAS 6/iR Raid Controller

Sold out
$1.10

Specifications:

Tested for Full Functions, R2/Ready for Reuse

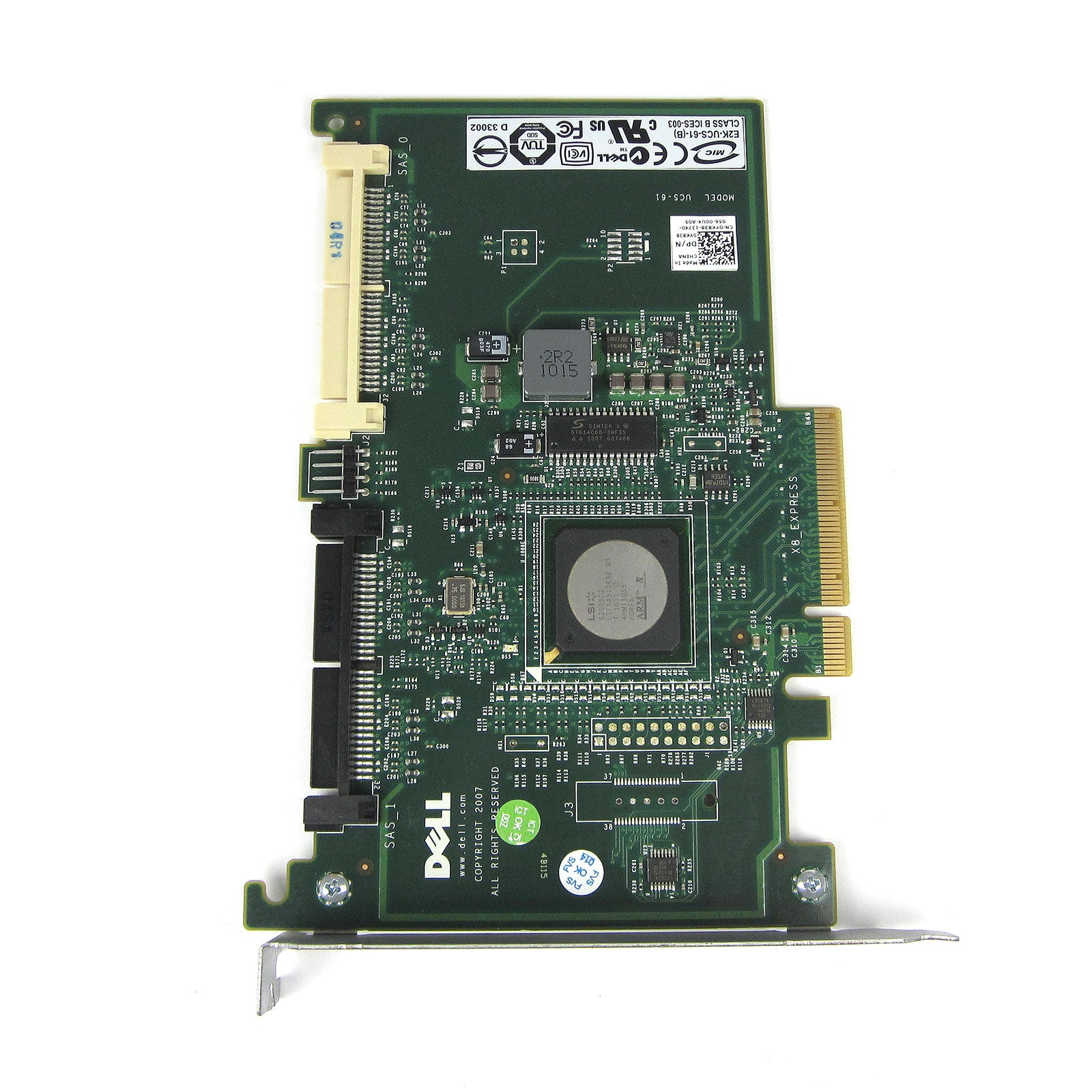

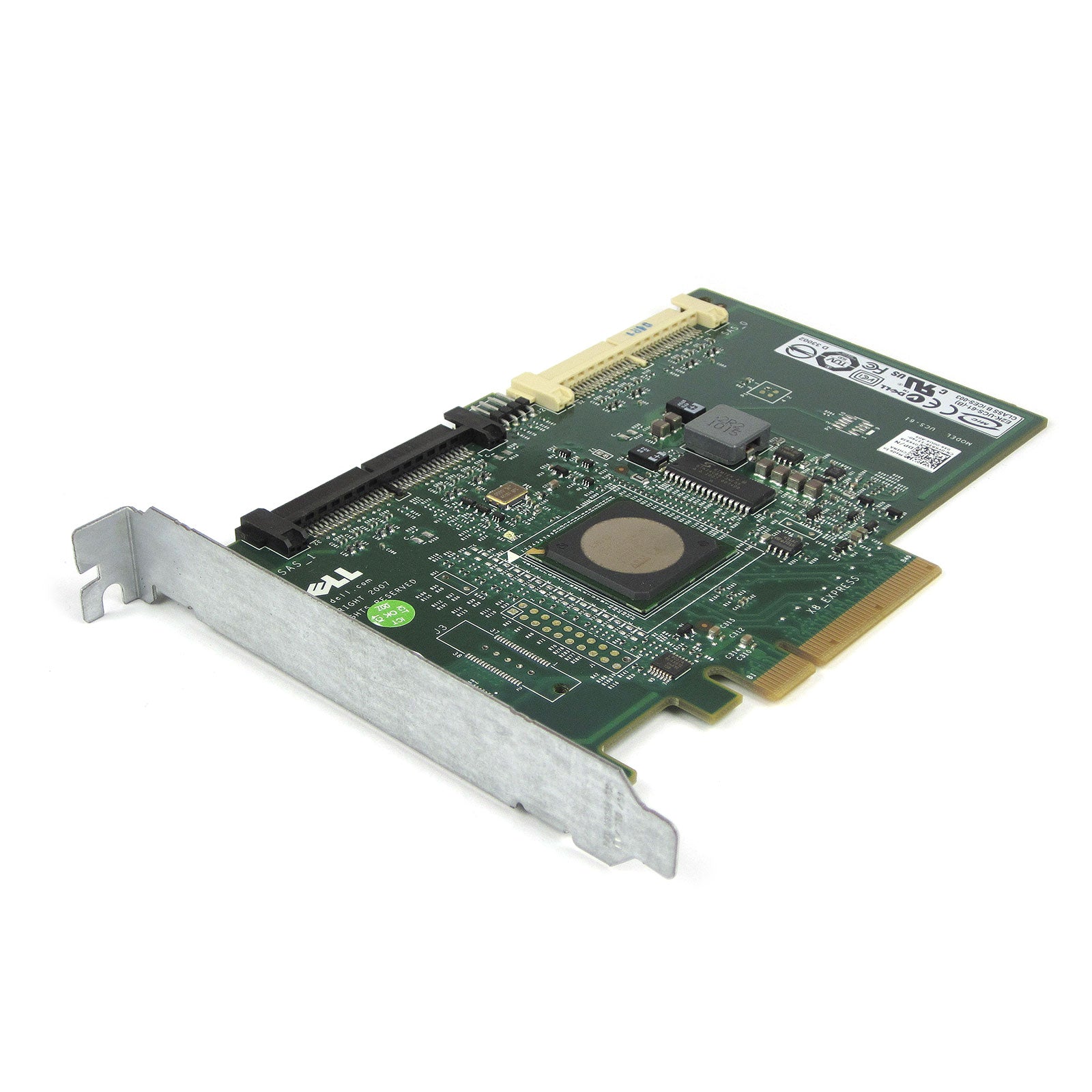

The SAS 6/iR is Dell's PCI Express 1.0 (PCIe) SAS HBA supporting SAS and SATA 3Gb/s drives as well as basic RAID 1 and 0 capability. It is built around the LSI SAS 1068e controller.

Compatible with: Dell PowerEdge R210, R310, R610, T610, R710, R410, and R510
Ports: Internal 2-port SAS 3Gb/s x4 (SFF-8484)
Supported RAID levels: 0, 1
Cache: None
Maximum number of drives supported: 10 (Maximum of 2 RAID volumes)
Maximum capacity per drive: 2TB (High Capacity Drives Not Supported)


SKU: SAS_6iR_R-Series
