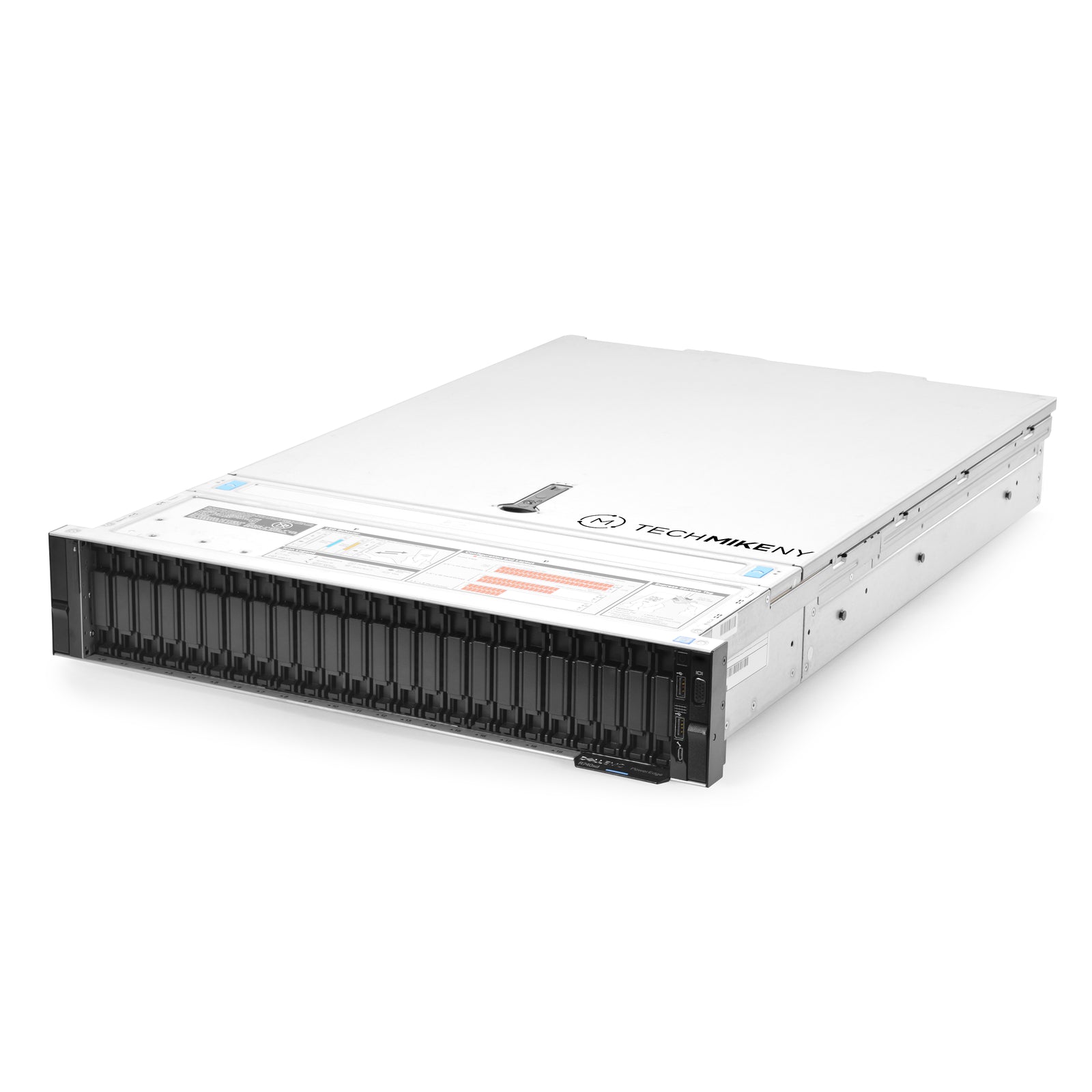

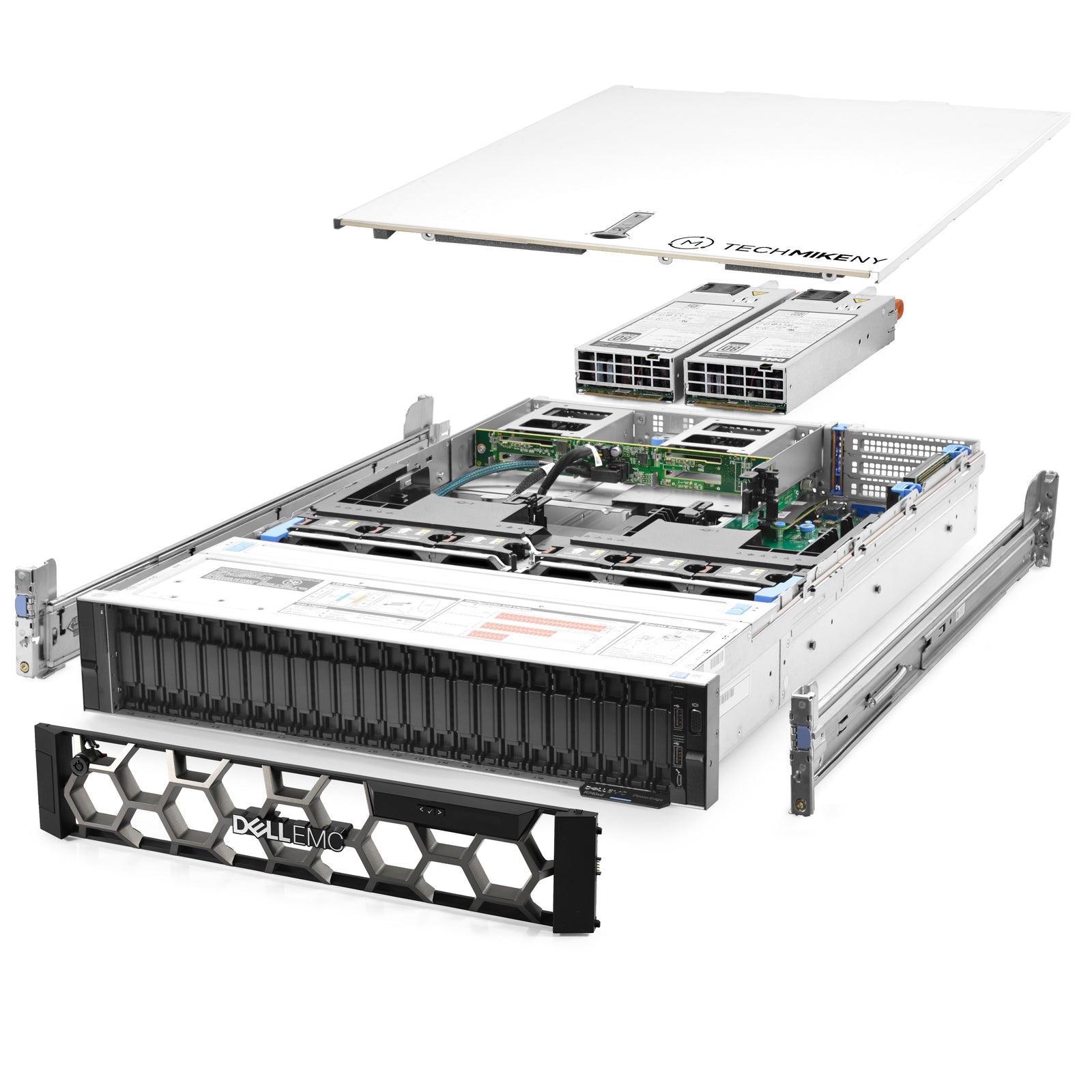

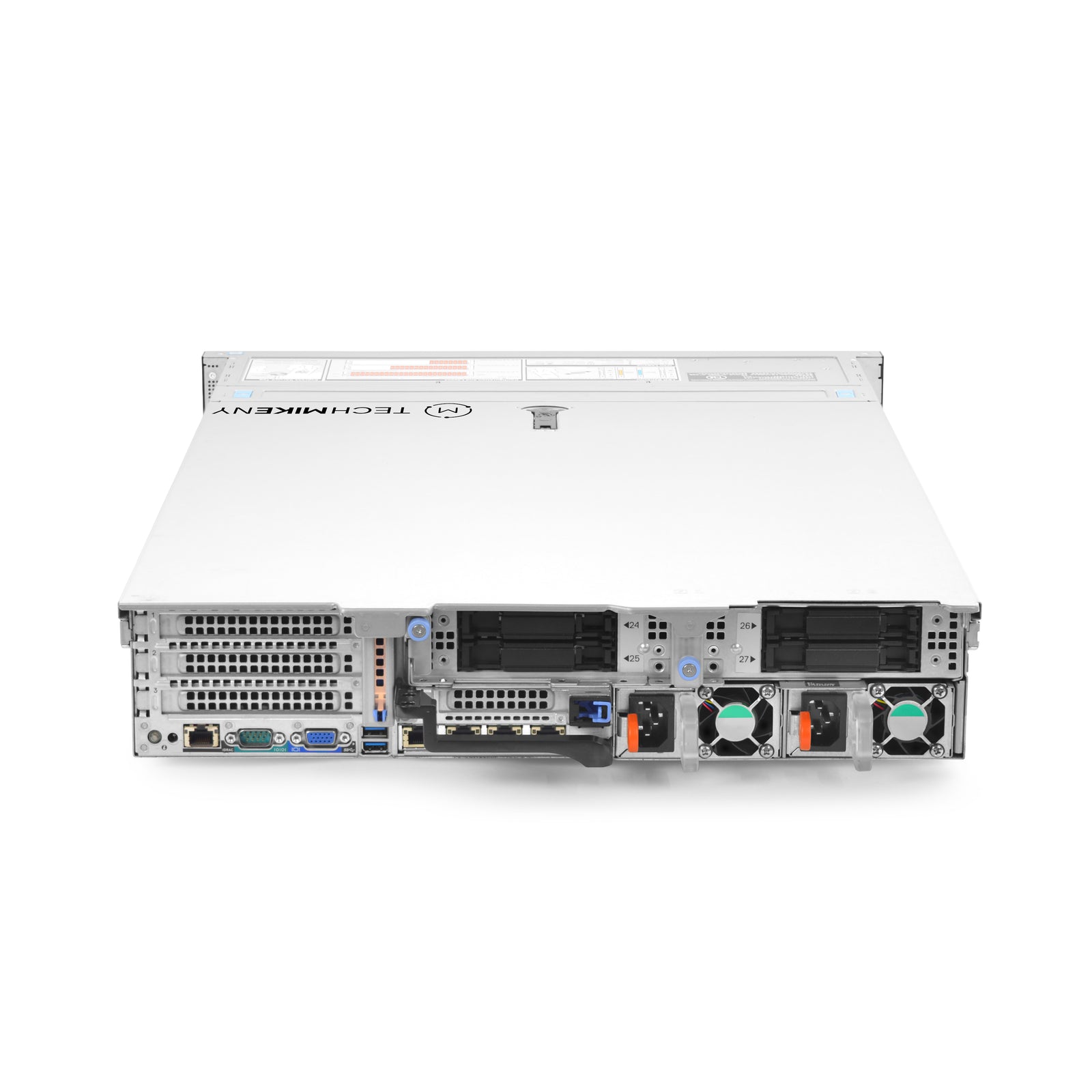

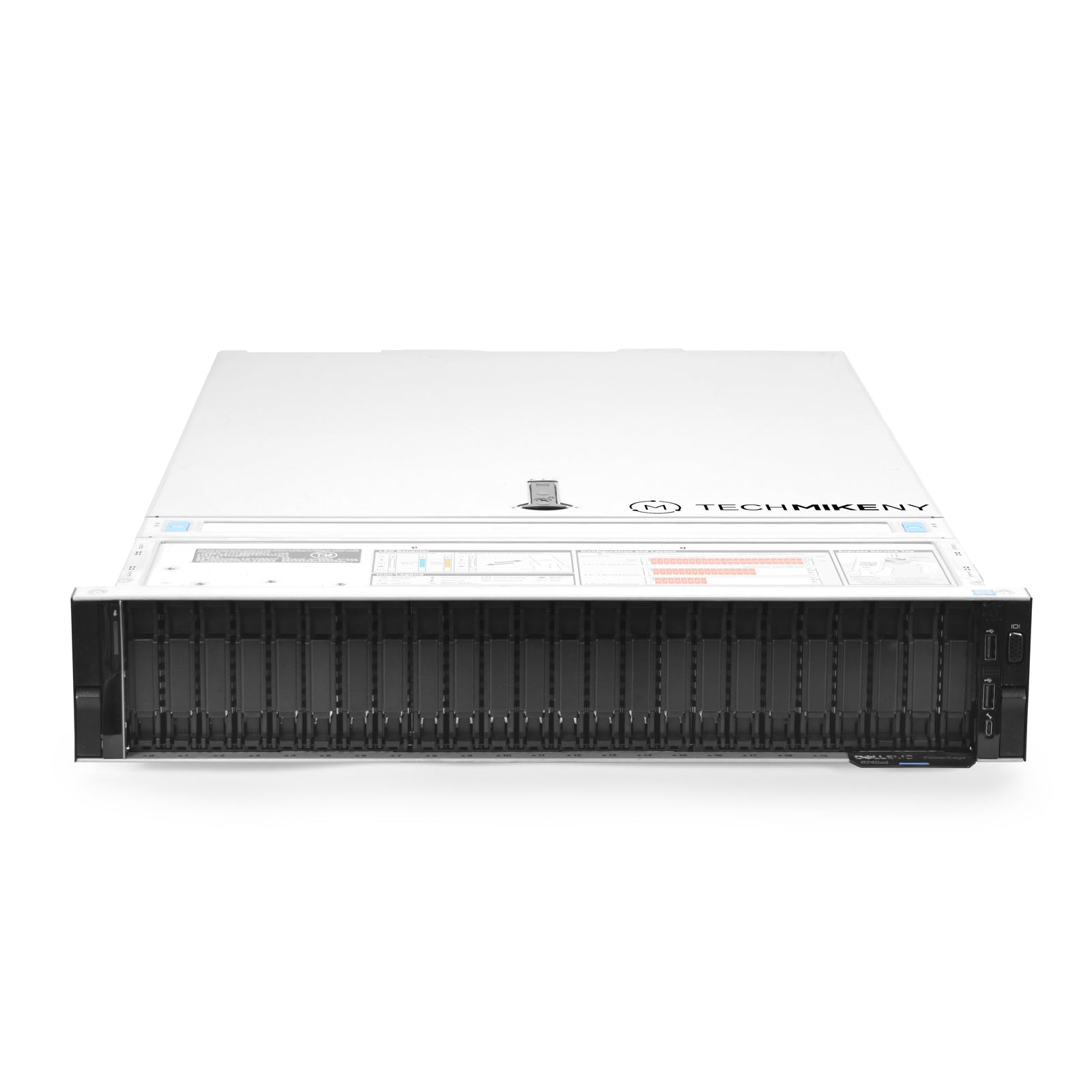

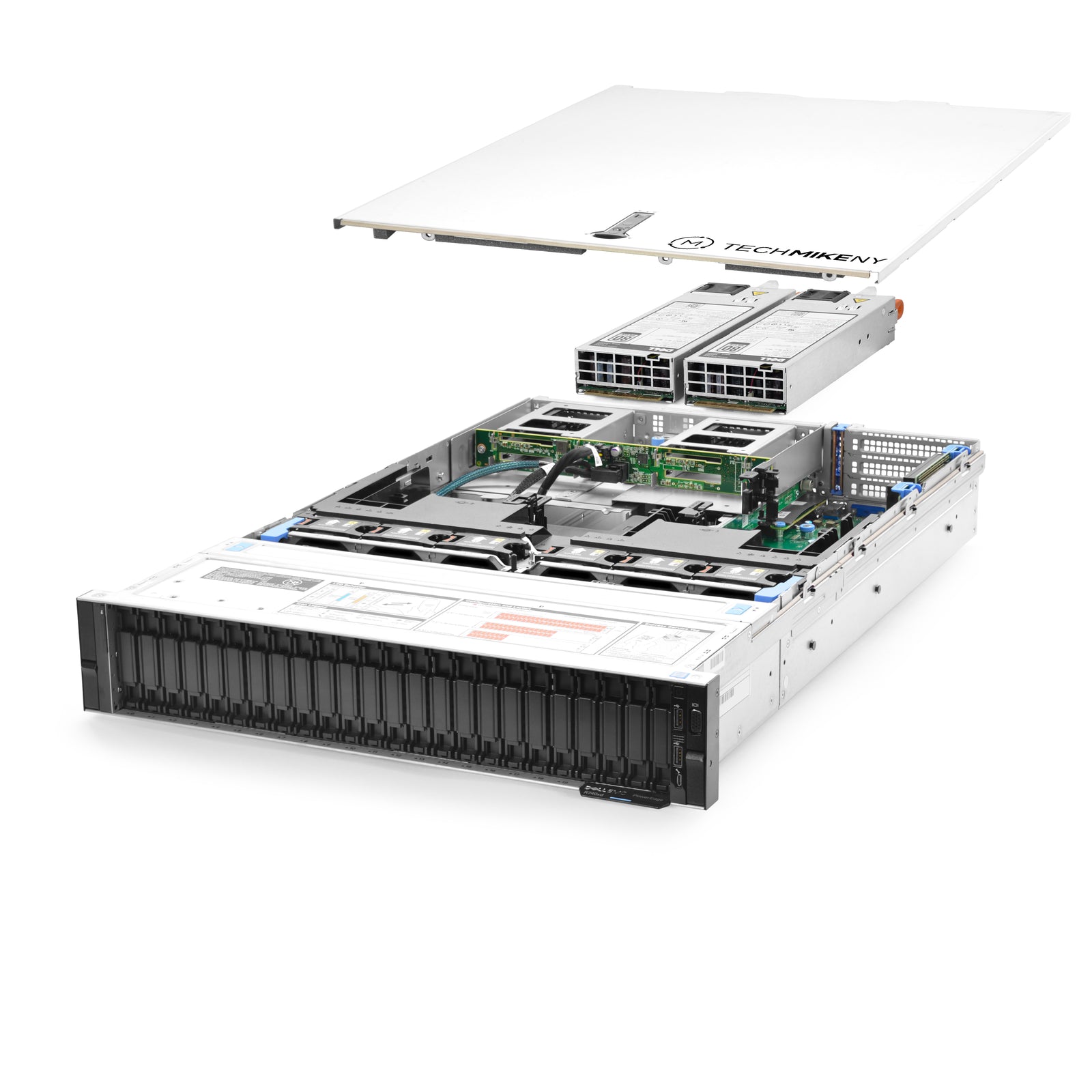

Dell PowerEdge R740xd 24-Bay 2.5'' 2U Server

CPU: RAM: Storage: None Build Summary

1 Need help? (718) 635-9880 Monday - Friday 9am - 5pm EST

Dell PowerEdge R740xd 24-Bay Rack-Mountable 2U Server Chassis

Description

Documentation

Build Summary

TechMikeNY’s Refurbished Dell PowerEdge R740xd is a high-performance, large memory footprint, 2-socket 2U rack dense server that shines when it comes to virtualization, high performance computing, and workgroup collaboration. The server supports several hypervisors, which include VMware, Citrix and Red Hat, among others.

Specifications
Model: Dell PowerEdge R740xd
CPU: Up to 2 x Intel® Xeon® Bronze, Silver, Gold and Platinum Series Processors
RAM: 24 DIMMS (Maximum 3TB DDR4 at 2933MT/s)
RAID: PERC S140, HBA330, H730P, H740P, H840 (external)
HDD: Up to 24 x 2.5" SAS/SSD/NVMe, Mid and Rear Bay options available
I/O: Up to 8 x PCIe 3.0 slots plus dedicated PERC slot
NIC: 4 x 1GbE, 2 x 10GbE + 2 x 1GbE, 4 x 10GbE, 2 x 25GbE
Remote Management: iDRAC 9
